Toyota Corolla Cross: General maintenance
Listed below are the general
maintenance items that
should be performed at the
intervals specified in the
"Owner's Warranty Information
Booklet" or "Owner's
Manual Supplement/Scheduled
Maintenance Guide". It
is recommended that any
problem you notice should
be brought to the attention
of your Toyota dealer or
qualified service shop for
advice.
WARNING
■If the engine is running
Turn the engine off and ensure
that there is adequate ventilation
before performing maintenance
checks.

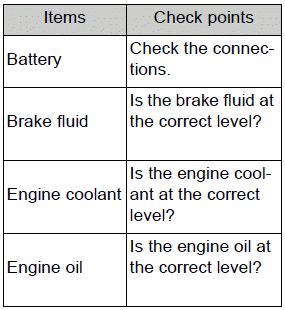

Engine compartment

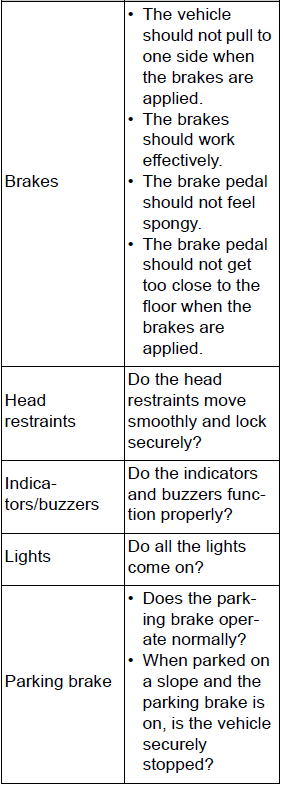

Vehicle interior

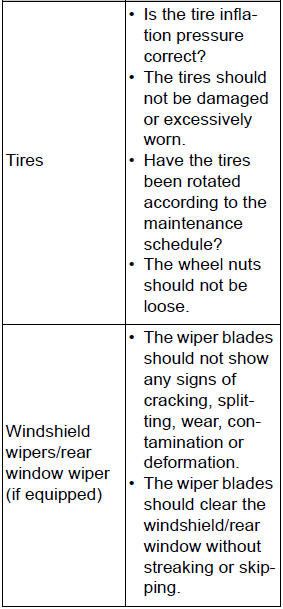

Vehicle exterior
